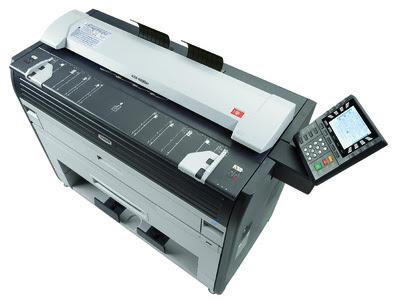

WIDE FORMAT KYOCERA KM 4800 W

WIDE FORMAT  -  PLOTTER & A0

COPIERS & PRINTERS KYOCERA Big Format



Mitra terbaik untuk menunjang EFESIENSI & EFEKSIFITAS Dokumen di perkantoran Design & Architecture, Contruction / Konstruksi dan Juga Civil Engineering DLL juga serta untuk Bisnis / Usaha. Anda dapat mencetak dalam gambar ukuran Besar ( Wide Format ).  1 mesin dengan Design sempurna ( Copy, Network Print dan Scan Color ). Dengan Memory Standard 512 MB and 80 GB HDD (shared with copy memory) dapat mencetak 4,8 meter/Menit, 3.3 cpm ( A0 ) & 5.6 cpm ( A1 ) dengan system Auto Run dan mempunya life time garanty wire cutting, Test Copy untuk ketepatan pencetakan. Easy maintenance and easy of use clear massage display. GARANSI FULL, AFTER SALES TERJAMIN & di dukung Tenaga Ahli, Kontrak Service Berkala dan Program – Program yang mendukung & Sparepart Ready Stock dalam Jangka Panjang.



Keunggulan Mesin Dari Produk yang sekelasnya :

• Tanpa Cleaning Blade
• Memiliki 5 Scanner Lamp / CCD ( 10 Roller setiap 5 Scanner lamp / CCD )  yang dapat menghasilkan hasil lebih BAIK, Hasil gambar Tidak BIAS ( Hasil Copy sama dengan Naskah Original )
• Roll Unit terpisah, Tidak menngunakan AS Besi pada Roller sehingga untuk Penggantian KERTAS sangat mudah hanya memasang ujungnya saja.
• Menggunakan system pemotong Wire Cutting ( Lebih Awet dan Tahan Lama ) dan pemotongan kertas bisa disesuaikan ( 3 System wire Cutting yaitu Standard Cut, Synchro cut & Specifield cut )
• Langsung Memiliki 2 Roll Unit kertas
• Umur Toner bisa mencapai 12.000 m X 2
• TONER RECYCLE
• Maximum Print Out bisa mencapai 50 Meter.
• Memiliki CANCEL PRINT JOB agar Penghematan Kertas bila Pencetakan Mengalami kesalahan.



SPESIFIKASI UMUM

General

• Technology               : LED + indirect, electrostatic method
• Engine speed                        : 5.6 (A1), 3.3 (A0) pages per minute, 4.8 meters per minute
• Resolution                 : 600 x 600 dpi (print/copy)
• Warm-up time                        : Approx. 300 seconds or less from power on Approx. 180 seconds or less from

  low power mode

• Time to first copy     : Approx. 32 seconds (A1) or less
• Time to first print      : Approx. 19 seconds (A1) or less
• Dimensions               : (W x D x H) Main unit: 1,266 x 600 x 1,107 mm
• Weight                                    : Approx. 219 kg
• Power source                        : AC 220 ~ 240 V, 50 Hz
• Power consumption :

Copying/Printing: 1,150 W or less

Stand-by: 500 W or less

Sleep mode: 50 W or less

Noise (ISO 7779 / ISO 9296)

Copying/Printing: 65 dB(A)

Stand-by: 60 dB(A)

Safety standards GS, TÜV, CE This unit is manufactured according to ISO 9001

quality standard and ISO 14001 environmental standardPrint fun

ctions

SPESIFIKASI PRINTER SYSTEM

• CPU                             : Celeron D 2.6 GHz or more
• Memory                        : Standard 512 MB and 80 GB HDD (shared with copy memory)
• Standard interface        : 10Base-T/100Base-TX
• Emulations                  : HP-GL / HP-GL2 / HP-RTL, Calcomp 906 / 907, TIFF 6.0 (G3, G4) CALS (G4),

  BMP, JPEG, Option: PDF/PS3

• Operating systems

Windows® printer driver

OS: Windows® 2000, Windows XP, Windows Vista®

Auto CAD HDI driver: Auto CAD 2000, 2000i, 2002, 2004,

2005, 2006, 2007, 2008, 2009

• Printer utility                : For client, OS: Windows® 2000, Windows XP, Windows Vista®

Copy functions

 SPESIFIKASI COPY

• Max. original size         : 914 x 12,000 mm , Min. original size 279 x 210 mm
• Copy size                     : Max. 914 x 6,000 mm, min. 279 x 210 mm
• Print size                     : Max. 914 x 6,000 mm, min. 279 x 210 mm
• Continuous copying     : 1–999
• Memory capacity          : Standard 512 MB and 80 GB HDD
• Zoom range                 : 25–400 % in 0.1 % steps
• Preset magnification ratios 4R / 4E
• Digital features :

Paper type selection, interrupt copy, automatic drawer

change, repeat copy, scan one copy many, rotation copy,

mirror image, sort, group, background removal, date

stamp, margin shift, border erase, sharpness

ScaSPESIFIKASI SCAN COLOR

• Functionality             : Scan-to-PC/FTP (Monochrome, Colour)
• Scan speed                : 4.2 (A1), 2.6 (A0) pages per minute in 600 dpi, line mode, 5 %
• Original recognition : Line, line/grayscale, grayscale
• Scan resolution         : 600 dpi, 400 dpi, 300 dpi, 200 dpi, 100 dpi
• Maximum scan size  : A0
• Interface                     : 10Base-T/100Base-TX
• File types                   : B/W: TIFF (G3, G4),CALS-G4, BMP, PDF, JPEG Colour: TIFF, PDF, JPEG
• Features                     : Scan to folder, density adjustment (9 steps), continuous scan,

  Background removal, border erase, mirror image, scan + copy
